Practical guidance for the inspection, fabrication, welding, dimensional control, coating and quality assurance of steel structures used in industrial, energy, infrastructure and construction projects.

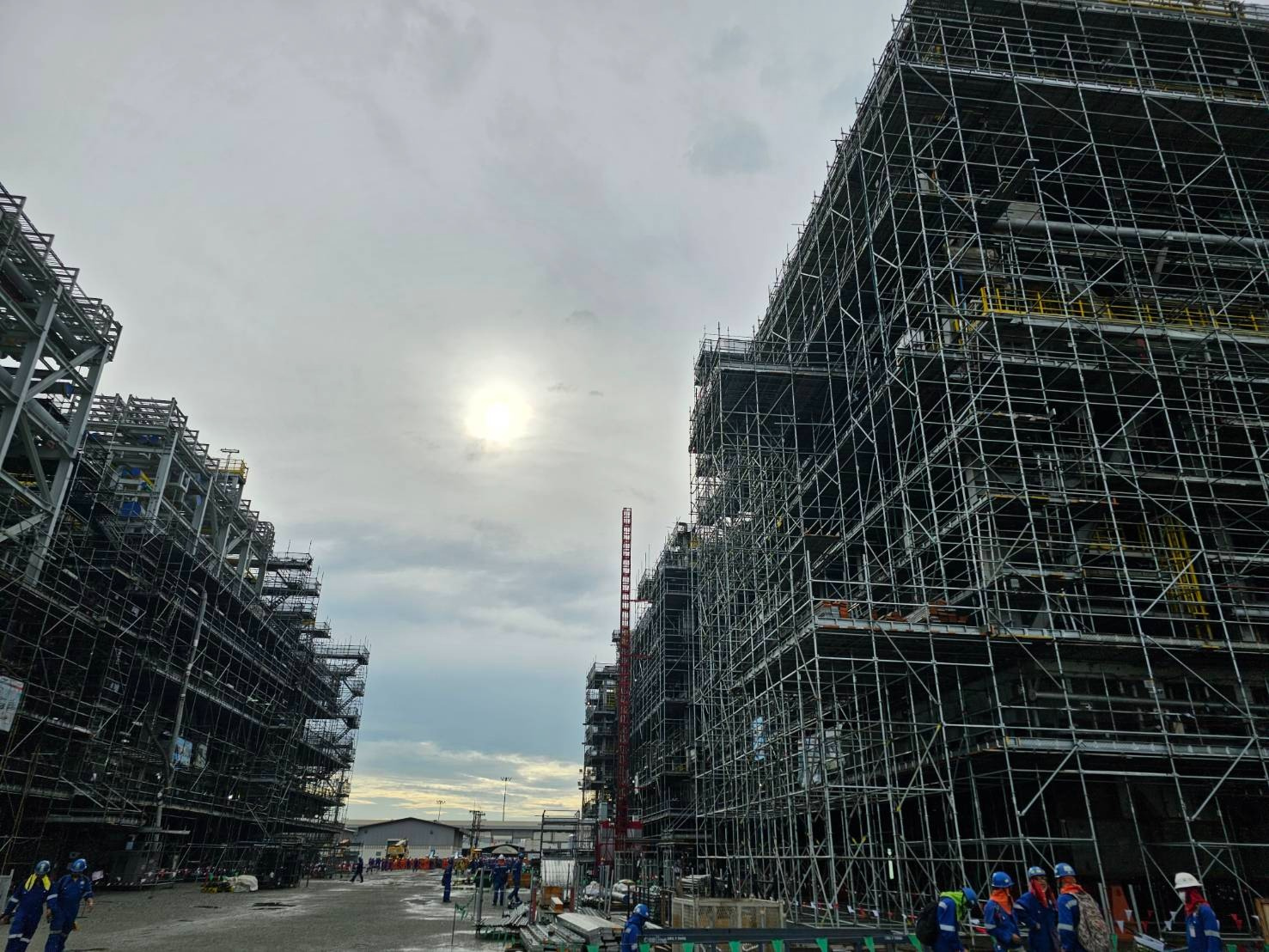

Steel Structure Inspection & Quality Control
Steel structures are critical components of industrial facilities, process plants, power projects, energy infrastructure, buildings and supporting structures. Effective inspection helps verify that materials, fabrication, welding, dimensional accuracy, surface preparation, coating and final assembly comply with approved drawings, specifications, inspection and test plans and applicable project requirements.
The MIIS Steel Structure Knowledge Hub provides practical inspection information for clients, engineers, QA/QC professionals, welding inspectors, NDT personnel, fabricators and project teams involved in steel fabrication and construction.
Material Inspection
Verification of material grades, certificates, traceability, dimensions, condition and compliance with approved material specifications.
Fabrication Inspection
Inspection of cutting, forming, fit-up, assembly, dimensional control, welding preparation and fabrication workmanship.
Welding Inspection
Review of WPS, welder qualifications, welding consumables, preheat, fit-up, welding parameters, visual inspection and NDT.
Dimensional Inspection
Verification of structural dimensions, alignment, straightness, squareness, elevations, tolerances and connection geometry.
Surface Preparation
Inspection of surface cleanliness, surface profile, environmental conditions and preparation before protective coating application.
Painting & Coating
Inspection of coating systems, DFT, application conditions, curing, repair areas and final coating quality.
Steel Structure Inspection Process
A systematic inspection approach should cover the complete fabrication and construction lifecycle, from material receipt through final release and documentation.
Material Receiving Inspection
Verify material identification, grade, dimensions, heat number, material test certificates, traceability and physical condition.
Fabrication & Fit-Up Inspection
Check cutting, edge preparation, component identification, fit-up, joint configuration, dimensions and alignment against approved drawings.
Welding Inspection
Confirm approved WPS availability, qualified welders, consumable control, preheat requirements, welding sequence, visual quality and applicable NDT requirements.
Dimensional & Alignment Inspection
Verify overall dimensions, member alignment, connection locations, bolt holes, elevations, straightness and specified fabrication tolerances.
Surface Preparation & Coating Inspection
Verify surface preparation, environmental conditions, coating application, dry film thickness, curing and repair of defective areas.
Final Inspection & Documentation
Confirm completion of punch items, inspection records, NDT reports, dimensional reports, coating records, material traceability and final quality documentation.
Critical Inspection Points
- Approved drawings and latest revision status
- Material identification and full traceability
- Material Test Certificates and applicable specifications
- Cutting, edge preparation and dimensional accuracy
- Welding procedure and welder qualification
- Welding consumable control and storage
- Fit-up, alignment and joint configuration
- Visual inspection and applicable NDT
- Structural dimensional tolerances
- Bolt holes, bolted connections and connection details
- Surface preparation and coating system compliance
- Dry Film Thickness and coating repair
- Preservation, handling and transportation
- Final inspection records and quality documentation
Welding Inspection for Steel Structures
Welding is one of the most important quality-control activities in structural steel fabrication. Inspection should verify that welding is performed using approved procedures and qualified personnel and that completed welds meet the applicable project acceptance criteria.
Typical Welding Inspection Activities
- Review approved WPS and supporting PQR documentation.
- Verify welder and welding operator qualifications.
- Check material identification and joint preparation.
- Verify preheat and interpass temperature where specified.
- Confirm correct welding consumables and storage conditions.
- Inspect weld profile and workmanship.
- Identify surface-breaking defects during visual inspection.
- Review applicable MT, PT, UT or RT examination results.
- Verify repair welding and re-inspection requirements.
Dimensional & Structural Inspection
Dimensional inspection confirms that fabricated steel members and assemblies conform to approved drawings and specified tolerances before shipment, erection or final acceptance.
- Overall member length and dimensions
- Beam and column alignment
- Plumbness and straightness
- Connection and bolt-hole locations
- Base plate dimensions and orientation
- Stiffener and attachment locations
- Assembly squareness and geometry
- Elevation and reference datum verification
Surface Preparation & Coating Inspection
Protective coating systems are essential for controlling corrosion and extending the service life of steel structures. Inspection should cover the complete coating process from surface preparation through final acceptance.
- Surface cleanliness
- Surface profile
- Ambient temperature and relative humidity
- Steel temperature and dew-point conditions
- Primer and coating application
- Dry Film Thickness (DFT)
- Recoat intervals and curing
- Coating defects and repair
- Final visual inspection
Codes, Standards & Project Requirements
Steel structure inspection should always be performed against the applicable project documents and governing requirements. Depending on the project scope, commonly referenced standards may include:
AWS D1.1 — Structural Welding Code – Steel
AISC — Structural Steel Design and Construction Requirements
ISO 3834 — Quality Requirements for Fusion Welding
ISO 8501 — Preparation of Steel Substrates
ISO 12944 — Protective Paint Systems for Corrosion Protection
ASTM Standards — Material, testing and inspection requirements where applicable
Project Specifications — Approved drawings, ITP, procedures and client requirements
The applicable edition, acceptance criteria and project-specific requirements should always be confirmed before inspection.
Inspection Documentation
Complete and traceable documentation is an essential part of steel structure quality assurance. Typical inspection records include:
- Material Receiving Inspection Reports
- Material Test Certificates
- WPS / PQR / Welder Qualification Records
- Fit-Up Inspection Reports
- Visual Welding Inspection Reports
- NDT Reports
- Dimensional Inspection Reports
- Coating Inspection Reports
- Non-Conformance Reports (NCR)
- Punch Lists and Close-Out Records
- Final Manufacturing Record / Quality Dossier
Steel Structure Inspection Checklist
Before Fabrication
✓ Approved drawings
✓ Material specifications
✓ MTC verification
✓ WPS availability
✓ Welder qualifications
During Fabrication
✓ Cutting and preparation
✓ Fit-up and alignment
✓ Welding parameters
✓ Visual inspection
✓ Dimensional control
Final Inspection
✓ NDT completion
✓ Coating inspection
✓ Punch-item closeout
✓ Documentation review
✓ Final release
